Thermal Properties of Concrete in the Development of Precast Walls for Thermoelectricity Generation Utilizing Thermoelectric Principles

Jintara  Lawongkerd; Suppamit  Nuntawattananukul; Khemissara  Yodprasert; Punyatorn  Jangkrajang

doi:10.6180/jase.202608_31.005

Thermal Properties of Concrete in the Development of Precast Walls for Thermoelectricity Generation Utilizing Thermoelectric Principles

Jintara LawongkerdThis email address is being protected from spambots. You need JavaScript enabled to view it., Suppamit Nuntawattananukul, Khemissara Yodprasert, and Punyatorn Jangkrajang

Research Unit in Advanced Mechanics of Solids and Vibration, Department of Civil Engineering, Faculty of Engineering, Thammasat School of Engineering, Thammasat University, Pathum Thani, Thailand

Received: October 4, 2025
Accepted: December 29, 2025
Publication Date: February 1, 2026

Copyright The Author(s). This is an open access article distributed under the terms of the Creative Commons Attribution License (CC BY 4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are cited.

Download Citation: ||https://doi.org/10.6180/jase.202608_31.005

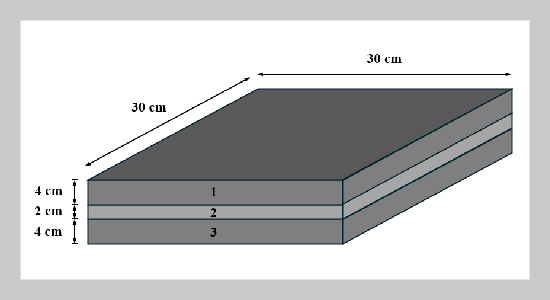

This study aims to develop a concrete model for prefabricated walls intended for future thermoelectric power generation. Three-layer composite concrete samples were fabricated to achieve the maximum temperature difference between layers. These samples can be applied to the thermoelectric principle, generating electricity by converting heat energy from the temperature difference occurring at two points between the concrete layers. The concrete layers were fabricated by replacing 10% of Portland cement with bagasse ash and 5% of sand with graphite powder. The samples were then subjected to heat absorption tests over time to measure temperature differences. The results suggest that the three-layer composite concrete samples consisting of graphite powder bagasse ash-graphite powder (G-B-G) achieved a temperature difference 1.59 times greater than that of Portland cement concrete samples. This finding indicates the potential for higher thermoelectricity generation compared to Portland cement concrete, while also reducing electricity use, and improving heat insulation in buildings. In addition, the mechanical properties were tested by measuring the compressive strength and flexural strength of the concrete samples to assess their practical suitability.

Keywords: Thermoelectric; Three-layer composite concrete; Bagasse ash; Graphite

[1] A. Dyson, N. Keena, M. L. Lokko, B. Reck, C. Cia rdullo, J. Duwyn, S. Loran, M. Mohammed, M. A. Etman, H. Wildman, et al. Building materials and the climate: constructing a new future. Nairobi, Kenya: United Nations Environment Programme, 2023.
[2] I. P. on Climate Change (IPCC). Climate Change and Land: IPCC Special Report on Climate Change, Desertification, Land Degradation, Sustainable Land Management, Food Security, and Greenhouse Gas Fluxes in Terrestrial Ecosystems. Cambridge University Press, 2022.
[3] R.Hannappel.“Theimpactofglobal warming on the automotive industry”. In: AIP conference proceedings. 1871. 1. AIP Publishing LLC. 2017, 060001.
[4] M. Shafer, (2020) “Global crop waste burning–micro biochar; how a small community development organization learned experientially to address a huge problem one tiny field at a time" Sustainable Earth 3(1): 18. DOI: 10.1186/s42055-020-00037-y.
[5] E. Garcia, J. Johnston, R. McConnell, L. Palinkas, and S. P. Eckel, (2023) “California’s early transition to electric vehicles: Observed health and air quality co-benefits" Science of the Total Environment 867: 161761. DOI: 10.1016/j.scitotenv.2023.161761.
[6] P. A. Owusu and S. Asumadu-Sarkodie, (2016) “A review of renewable energy sources, sustainability issues and climate change mitigation" Cogent Engineering 3(1): 1167990. DOI: 10.1080/23311916.2016.11677990.
[7] C. Goupil, ed. Continuum theory and modeling of thermoelectric elements. John Wiley & Sons, 2015.
[8] H. J. Goldsmid. “Thermoelectric properties of metals and semiconductors”. In: Introduction to Thermoelectricity. Berlin, Heidelberg: Springer, 2009, 23–41.
[9] Y. S. Byon and J. W. Jeong, (2020) “Annual energy harvesting performance of a phase change material-integrated thermoelectric power generation block in building walls" Energy and Buildings 228: 110470. DOI: 10.1016/j.enbuild.2020.110470.
[10] B. Orr, A. Akbarzadeh, M. Mochizuki, and R. Singh, (2016) “A review of car waste heat recovery systems utilising thermoelectric generators and heat pipes" Applied Thermal Engineering 101: 490–495. DOI: 10.1016/j.applthermaleng.2025.10.081.
[11] S. Inthachai and J. Jamradloedluk. “Development and Test of Thermoelectric Roof Tiles". (phdthesis). Ma hasarakham University, 2019.
[12] S. Inthachaia, W. Prapaporn, K. Singsoog, and T. Seetawan. “Fabrication of New Thermoelectric Block Floor for Power generator”. In: Journal of Physics: Con ference Series. 1259. 1. IOP Publishing. 2019, 012002.
[13] S. Jugsujinda, A. Vora-ud, and T. Seetawan, (2011) “Analyzing of thermoelectric refrigerator performance" Procedia Engineering 8: 154–159. DOI: 10.1016/j.proeng.2011.03.028.
[14] K. Maneesai, S. Khammahong, P. Siripoom, C. Phrompet, C. Sriwong, S. Maensiri, and C. Ruttana pun, (2023) “Fabrication and thermoelectric conversion of thermoelectric concrete brick with buried unileg N-type CaMnO3 thermoelectric module inside" Scientific Re ports 13(1): 916. DOI: 10.1038/s41598-023-28080-7.
[15] D.Enescu, (2019) “Thermoelectric energy harvesting: basic principles and applications" Green energy advances 1: 38. DOI: 10.5772/intechopen.83495.
[16] R. Martins, R. D.Carmo,H.Costa,andE.Júlio, (2023) “A review on precast structural concrete walls and connections" Advances in Structural Engineering 26(14): 2600–2620. DOI: 10.1177/13694332231191073.
[17] Z. Islamaj. “The advantage of prefabricated concrete structures”. In: Conference Book of Proceedings. 2018, 110.
[18] P. Muangtong, S. Sujjavanich, S. Boonsalee, S. Poomiapiradee, and D. Chaysuwan, (2013) “Effects of fine bagasse ash on the workability and compressive strength of mortars" Chiang Mai Journal of Science 40(1): 126–134.
[19] F. Batool, A. Masood,andM.Ali,(2020)“Characterization of sugarcane bagasse ash as pozzolan and influence on concrete properties" Arabian Journal for Science and Engineering 45(5): 3891–3900. DOI: 10.1007/s13369-019-04301-y.
[20] N.Amin, (2011) “Use of bagasse ash in concrete and its impact on the strength and chloride resistivity" Journal of materials in civil engineering 23(5): 717–720. DOI: 10.1061/(ASCE)MT.1943-5533.0000227.
[21] A. J. Al-Bayati, K. H. Butrouna, R. E. Steffen, B. Salman, and M. Al-Qaralleh. “Utilizing graphite powder to improve concrete conductivity, compres sive strength, and workability”. In: Construction Re search Congress 2020. Reston, VA: American Society of Civil Engineers, 2020, 881–888.
[22] S. Liu, M. Q. Wu, M. J. Rao, L. H. Li, and H. L. Xiao, (2019) “Preparation, properties, and microstructure of graphite powder-containing conductive concrete" Strength of Materials 51(1): 76–84. DOI: 10.1007/s11223-019-00052-1.
[23] X. Ren, Y. Ding, Q. Liu, S. Chen, and F. Song, (2022) “Effect of different volume fraction of steel fiber/graphite on thermal conductivity and compressive properties of concrete" Frontiers in Materials 9: 1003830. DOI: 10.3389/fmats.2022.1003830.
[24] ASTMInternational. ASTM C192: Standard Practice for Making and Curing Concrete Test Specimens in the Laboratory. West Conshohocken, PA, 2013.
[25] ASTM International. ASTM C143/C143M–12: Standard Test Method for Slump of Hydraulic-Cement Con crete. West Conshohocken, PA, 2014.
[26] C. Astm, (2006) “642, Standard test method for density, absorption, and voids in hardened concrete" Annual book of ASTM standards 4(2):
[27] C. Astm, (2006) “39, Standard Test Method for Compressive Strength of Cylindrical Concrete Specimens" Annual book of ASTM standards 4(2):
[28] C. Astm, (2006) “78, Standard Test Method for Flexural Strength of Concrete (Using Simple Beam with Third Point Loading" Annual book of ASTM standards 4(2):
[29] L. Prasittisopin and D. Trejo, (2017) “Performance characteristics of blended cementitious systems incorporating chemically transformed rice husk Ash" Advances in Civil Engineering Materials 6(1): 17–35. DOI: 10. 1520/ACEM20160001.
[30] L. Prasittisopin and D. Trejo, (2018) “Effects of mixing time and revolution count on characteristics of blended cement containing rice husk ash" Journal of Materials in Civil Engineering 30(1): 04017262. DOI: 10.1061/ (ASCE)MT.1943-5533.0002133.
[31] L. Prasittisopin, (2024) “Power plant waste (fly ash, bot tom ash, biomass ash) management for promoting circular economy in sustainable construction: emerging economy context" Smart and Sustainable Built Environment: DOI: 10.1108/SASBE-09-2024-0395.
[32] L. Prasittisopin, W. Tuvayanond, T. H. K. Kang, and S. Kaewunruen, (2025) “Concrete mix design of recycled concrete aggregate (rca): analysis of review papers, characteristics, research trends, and underexplored topics" Resources 14(2): 21. DOI: 10.3390/resources14020021.
[33] M. Safiuddin, H. B. Mahmud, and M. Z. Jumaat, (2011) “Efficacy of ASTM saturation techniques for measuring the water absorption of concrete" Arabian Journal for Science and Engineering 36(5): 761–768. DOI: 10.1007/s13369-011-0080-6.
[34] J. Lawongkerd, P. Jongvivatsakul, K. Vichai, K. Yo dprasert, C. Pikkuwayo, L. Prasittisopin, J. Rung amornrat, and S. Keawsawasvong, (2025) “Optimizing thermoelectric energy harvesting from concrete sur faces: a comparative study of graphite powder and steel fiber reinforcement" Sustainable and Resilient Infrastructure 10(4): 1448–1461. DOI: 10.1080/23789689.2025.2452106.
[35] J. Lawongkerd, K. Vichai, B. Thamniap, L. Prasittisopin, O. Saensuk, and S. Keawsawasvong, (2024) “A study of thermoelectric energy harvesting on asphalt concrete pavement" Transportation Infrastructure Geotechnology 11(4): 1448–1461. DOI: 10.1007/s40515-024-00377-8.
