Failure mechanism of reinforced concrete beam based on multi-parameter monitoring method of acoustic-optical-thermal

Yun  Sun; Da  Song; Feng  Chen; Wenjing  Zhong

doi:10.6180/jase.202603_29(3).0017

Failure mechanism of reinforced concrete beam based on multi-parameter monitoring method of acoustic-optical-thermal

Yun Sun^1,2This email address is being protected from spambots. You need JavaScript enabled to view it., Da Song¹, Feng Chen¹, and Wenjing Zhong¹

¹School of Civil Engineering, Nanyang Institute of Technology, Nanyang 473004, China

²Henan International Joint Laboratory of Dynamics of Impact and Disaster of Engineering Structures, Nanyang Institute of Technology, Nanyang, 473004, China

Received: April 13, 2025
Accepted: June 24, 2025
Publication Date: July 11, 2025

Copyright The Author(s). This is an open access article distributed under the terms of the Creative Commons Attribution License (CC BY 4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are cited.

Download Citation: ||https://doi.org/10.6180/jase.202603_29(3).0017

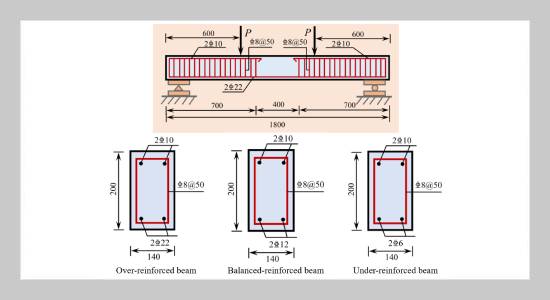

This study employed a multi-parameter approach, integrating acoustic emission (AE), digital image correlation (DIC), and infrared thermal imaging (ITI) technology to investigate the failure mechanisms of reinforced concrete beams. Six beam specimens with varying reinforcement ratios were subjected to static loading and monitored by AE, DIC, and ITI to document the real-time evolution of damage. The DIC successfully quantified the full-field strain and crack propagation, revealing distinct failure modes. The stages of crack development were further analyzed through AE energy analysis, and the ITI detected temperature gradient variation associated with crack and localized damage. The results demonstrate that DIC technology can detect cracks at an earlier stage and track their dynamic change trends. The most significant energy dissipation was observed during the failure of the under-reinforced beam. Throughout the entire beam failure process, the balanced-reinforced beam exhibited the highest temperature rise rate, whereas the under-reinforced beam showed the lowest. Multi-parameter monitoring offers synergistic advantages, validating the effectiveness of integrating acoustic, optical, and thermal data for a thorough structural health evaluation. This approach provides theoretical and technical insights for non-destructive assessment and early warning in reinforced concrete structures.

Keywords: reinforced concrete beam; failure mode; acoustic emission; digital image correlation; infrared thermal image; multi-parameter monitoring
