Ahmed N.Rashid1, Yasir. H. Ali2This email address is being protected from spambots. You need JavaScript enabled to view it., and Ahmed S. Abdalaziz1

1Mechanical Engineering Dept. College of engineering, University of Mosul, Mosul, Iraq

2Department of Power Mechanics Techniques Engineering, Technical College Mosul, Northern Technical University, Mosul, Iraq




Received: August 27, 2024
Accepted: April 4, 2025
Publication Date: May 10, 2025

 Copyright The Author(s). This is an open access article distributed under the terms of the Creative Commons Attribution License (CC BY 4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are cited.


Download Citation: ||https://doi.org/10.6180/jase.202601_29(1).0020

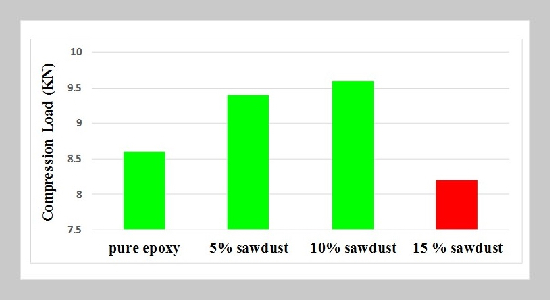

The primary aim of this study is to improve the compressive strength (CS) of the particulate composites. This is accomplished by mixing a polymer base with various additives, such as sawdust (SD), aluminium (Al), and iron (Fe) particles. The necessary composites are produced by adding varying weight percentages (wt%), i.e., 5, 10, and 15% weight-by-weight (w/w) of the additive compounds. In this study, the researchers employed a hand-moulding approach to produce a compressed composite. The experimental findings indicated improved CS value of some of the composites. These findings were influenced by factors such as the type of additives, density, wt% of the additive, and the properties of particle dispersion within the polymer. It was noted that when 15% (w/w) of Fe particles were added to the compound, the CS value improved by 23%. Despite an excellent dispersion of particles within the polymer, a minimum improvement in CS of 12% was observed after the addition of 10 wt% of SD particles.


Keywords: compressive strength; particulate composites; mixing a polymer; sawdust; aluminum; iron


  1. [1] M.P.A.N.M.White,(1983)“Straw-reinforced polyester composites" Journal of Materials Science 18(5): 1549 1556. DOI: 10.1007/BF01111977.
  2. [2] O. Asi, (2009) “Mechanical properties of glass-fiber reinforced epoxy composites filled with Al 2O3 particles" Journal of reinforced plastics and composites28(23): 2861–2867. DOI: 10.1177/0731684408093975.
  3. [3] M. Yilmaz, H. Unal, and A. Mimaroglu, (2008)“Study of the strength and erosive behavior of CaCO3/glass fiber reinforced polyester composite" Express Polym Lett 2: 890–895. DOI: 10.3144/expresspolymlett.2008.104.
  4. [4] M. Bhagyashekar and R. Rao, (2010) “Characterization of mechanical behavior of metallic and non-metallic particulate filled epoxy matrix composites" Journal of reinforced plastics and composites 29(1): 30–42. DOI: 10.1177/0731684408095034.
  5. [5] S. Hassan, V. Aigbodion, and S. Patrick, (2012) “Development of polyester/eggshell particulate composites" Tribology in industry 34(4): 217.
  6. [6] S. Eren and S. Suba¸ sı, (2021) “Effect of The Filler Type and Particle Distribution Changes on Polyester Matrix Composites" Sakarya University Journal of Science 25(4): 1009–1019. DOI: 10.16984/saufenbilder.781256.
  7. [7] H. A. Chlob and R. M. Fenjan.“Investigation the compression strength and thermal properties of composites using natural additives with epoxy”. In: Journal of Physics: Conference Series. 1973. 1. IOP Publishing. 2021, 012093. DOI: 10.1088/1742-6596/1973/1/012093.
  8. [8] E. Ate¸s, K. Aztekin, and R. Çakır, (2010) “Determınatıon of the densıty and compressıon strength optımızatıon of wıthout fıllıng materıal composıtes" Journal of Engineering and Natural Sciences Mühendislik ve Fen Bilimleri Dergisi 28: 287–297.
  9. [9] H. Nhoo, R. M. Fenjan, and A. A. Ayash, (2022) “Studying the effects of different additives on thermal con ductivity and mechanical characteristics of epoxybased composite materials" International Journal of Mechanical Engineering 7(1): 4990–4996.
  10. [10] M. Bhagyashekar and R. Rao, (2010) “Characterization of mechanical behavior of metallic and non-metallic particulate filled epoxy matrix composites" Journal of reinforced plastics and composites 29(1): 30–42. DOI: 10.1177/0731684408095034.
